Home Energy Usage

I decided to look at my home energy usage. Below are notes on how I’m approaching it. I wish I could get insight from the MIOS graphing plugin, but it is pretty basic and can’t throw out outliers and has terrible zoom capability. I also never figured out how to set the y-axis.

In order to build a plot, I considered the following options:

  • Use a custom javascript library that has zoom capability (i.e. re-purpose a stock chart)
  • Use MATLAB

I had to use MATLAB (or similar) to condition the data in any case. First, I had to scp the data over from my Vera. For example:

scp remote@micasa:/dataMine/database/10/raw/2302.txt tmp/10_2.txt

Which I was able to pull together using some MATLAB:

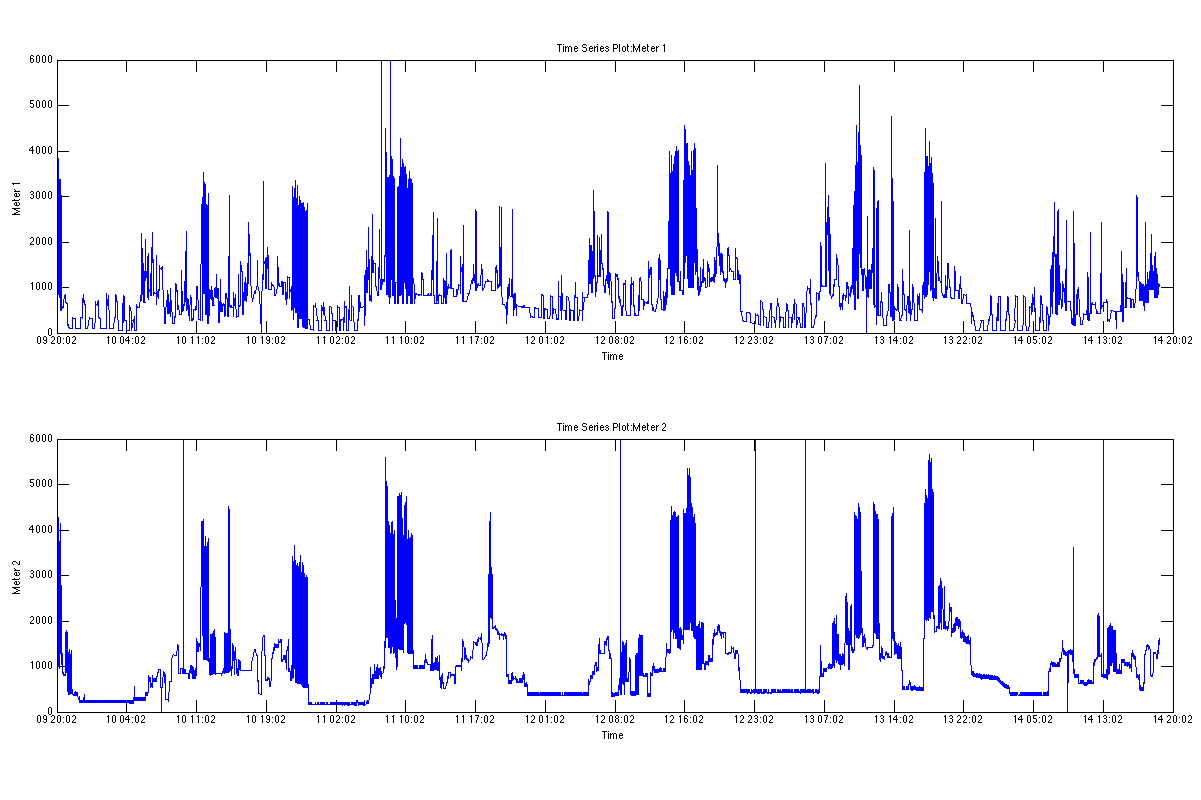

Since I monitor both legs of my electrical setup, I would have two plots. Here is what my MATLAB code currently produces (click on the plot below to do some analysis):

Booher Home Energy Use From 9 to 14 Feb

Booher Home Energy Use From 9 to 14 Feb

I’m not happy with this plot. It is hard to get at the events that are happening. I can’t easily put vertical bands on because the units are all strange with the time series plot. I definitely can’t browse the data and get insight for what is happening. I also want to add both datasets together so I can see total energy consumption.

Additional data from Dominion Power

Also, as part of my analysis. I pulled together some historical data from Dominion.

Energy Usage from Dominion Power

Energy Usage from Dominion Power

Actual Data

Meter Read Date Days Usage Daily Usage
02/04/2014 29 1240 43
01/06/2014 33 1060 32
12/04/2013 34 1271 37
10/31/2013 29 1144 39
10/02/2013 29 1181 41
09/03/2013 32 1523 48
08/02/2013 28 1342 48
07/05/2013 30 1608 54
06/05/2013 34 1318 39
05/02/2013 28 985 35
04/04/2013 30 1061 35
03/05/2013 29 1161 40
02/04/2013 31 1139 37

Table 2 — From Dominion Power

Meter Read Date Days Meter Reading Method Meter Read Usage (kWh) Demand Avg. Daily Usage
01/06/2014 33     6929     1060 0.0       32
12/04/2013 34     5869     1271 0.0       37
10/31/2013 29     4598     1144 0.0       39
10/02/2013 29     3454     1181 0.0       41
09/03/2013 32     2273     1523 0.0       48
08/02/2013 28      750     1342 0.0       48
07/05/2013 30 AMR – MOBILE READ BY VAN  19247     1608 0.0       54
06/05/2013 34 AMR – MOBILE READ BY VAN  17639     1318 0.0       39
05/02/2013 28 AMR – MOBILE READ BY VAN  16321      985 0.0       35
04/04/2013 30 AMR – MOBILE READ BY VAN  15336     1061 0.0       35
03/05/2013 29 AMR – MOBILE READ BY VAN  14275     1161 0.0       40
02/04/2013 31 AMR – MOBILE READ BY VAN  13114     1139 0.0       37
01/04/2013 32 AMR – MOBILE READ BY VAN  11975     1341 0.0       42
Totals

16,134
