Satisfiability modulo theories and their relevance to cyber-security

Cybersecurity and cryptoanalysis is a field filled with logic puzzles, math and numerical techniques. One of the most interesting technical areas I’ve worked goes by the name of satisfiability modulo theories (SMT) and their associated solvers. This post provides a layman’s introduction to SMT and its applications to computer science and the modern practice of learning how to break code hack.

Some background theory

Satisfiability modulo theories are a type of constraint-satisfaction problems that arise many places from software and hardware verification, to static program analysis and graph problems. They apply where logical formulas can describe a system’s states and their associated transformations. If you look under the hood for most tools used today for computer security, you will find they are based on mathematical logic as the calculus of computation. The most common constraint-satisfaction problem is propositional satisfiability (commonly called SAT) which aims to decide whether a formula composed of Boolean variables, formed using logical connectives, can be made true by choosing true/false values for its variables. In this sense, those familiar with Integer Programming will find a lot of similarities with SAT. SAT has been widely used in verification, artificial intelligence and many other areas.

As powerful as SAT problems are, what if instead of boolean constraints, we use arithmetic in a more general application to build our constraints? Often constraints are best described as linear relationships among integer or real variables. In order to understand and rigorously treat the sets involved domain theory is combined with propositional satisfiability to arrive at satisfiability modulo theory (SMT).

The satisfiability modulo theories problem is a decision problem for logical formulas with respect to combinations of background theories expressed in classical first-order logic with equality. An SMT solver decides the satisfiability of propositionally complex formulas in theories such as arithmetic and uninterpreted functions with equality. SMT solving has numerous applications in automated theorem proving, in hardware and software verification, and in scheduling and planning problems. SMT can be thought of as a form of the constraint satisfaction problem and thus a certain formalized approach to constraint programming.

The solvers developed under SMT have proven very useful in situations where linear constraints and other types of constraints are required with artificial intelligence and verification often presented as exemplars. An SMT solver can solve a SAT problem, but not vice-versa. SMT solvers draw on some of the most fundamental areas of computer science, as well as a century of symbolic logic. They combine the problem of Boolean satisfiability with domains (such as those studied in convex optimization and term-manipulating symbolic systems). Implementing SAT solvers requires an implementation of the decision problem, completeness and incompleteness of logical theories, and complexity theory.

The process of SMT solving is a procedure of finding an satisfying assignment for a quantifier-free formula for $F$ with predicates on a certain background theory $T$. Alternatively the SMT solving process could show such an assignment doesn’t exist. An assignment on all variables that satisfies these constraints is the model or $M$. $M$ will be satisified when $F$ evaluates to $\text{true}$ under a given background theory $T$. In this sense, $M$ entails $F$ under theory $T$ which is commonly expressed as: $ M \vDash_T F$. If theory $T$ is not decidable, then the underlying SMT problem is undecidable and no solver could exist. This means that given a conjunction of constraints in $T$, there must exist a procedure of finite steps that can test the existence of a satisfying assignment for these constraints.

Ok, that is a lot of jargon. What is this good for?

SMT solvers have been used since the 1970s, albeit in very specific contexts, most commonly theorem-proving cf ACL2 for some examples. More recently, SMT solvers have been helpful in test-case generation, model-based testing and static program analysis. In order to make this more real with a concrete example, let’s consider one of the most well-known operations research problems: job-shop scheduling.

If there are $n$ jobs to complete, each composed of $m$ tasks with different durations on $m$ machines. The start of a new task can be delayed indefinitely, but you can’t stop a task once it has started. For this problem, there are two constraints: precedence and resource constraints. Precedence specifies that one job has to happen before another and the resource constraint specifies that no two different tasks requiring the same machine are able to execute at the same time. If you are given a total maximum time $max$ and the duration of each task, the task is to decide if a schedule exists where the end time of every task is less than or equal to $max$ units of time. The duration of the $j$th task of job $i$ is $d_{i,j}$ and each task starts at $t_{i,j}$.

I’ve solved this problem before with heuristics such as Simulated_annealing, but you can encode the solution to this problem in SMT using the theory of linear arithmetic. First, you have to encode the precedence constraint:

$$ t_{i,j}+1 \geq t_{i,j} + d_{i,j} $$

This states that the start-time of task $j+1$ must be greater or equal to the start time of task $j$ plus its duration. The resource constraint ensures that jobs don’t overlap. Between job $i$ and job $i’$ this constraint says:

$$ (t_{i,j} \geq t_{i’,j}+d_{i’,j}) \vee (t_{i’,j} \geq t_{i,j} + d_{i,j}) $$

Lastly, each time must be non-negative, or $ t_{i,1} \geq 0 $ and the end time of the last task must be less than or equal to $max$ or $t_{i,m} + d_{i,m} \leq max$. Together, these constraints forms a logical formula that combines logical connectives (conjunctions, disjunction and negation) with atomic formulas in the form of linear arithmetic inequalities. This is the SMT formula and the solution is a mapping from the variables $t_{i,j}$ to values that make this formula $\text{true}$.

So how is this relevant to software security?

Since software uses logical formulas to describe program states and transformations between them, SMT has proven very useful to analyze, verify or test programs. In theory, if we tried every possible input to a computer program, and we could observe and understand every resultant behavior, we would know with certainty all possible vulnerabilities in a software program. The challenge of using formal methods to verify (exploit) software is to accomplish this certainty in a reasonable amount of time and this generally distills down to clever ways to reduce the state space.

For example, consider dynamic symbolic execution. In computational mathematics, algebraic or symbolic computation is a scientific area that refers to the study and development of algorithms and software for manipulating mathematical expressions and other mathematical objects. This is in contrast to scientific computing which is usually based on numerical computation with approximate floating point numbers, while symbolic computation emphasizes exact computation with expressions containing variables that are manipulated as symbols.

The software that performs symbolic calculations is called a computer algebra system. At the beginning of computer algebra, circa 1970, when common algorithms were translated into computer code, they turned out to be highly inefficient. This motivated the application of classical algebra in order to make it effective and to discover efficient algorithms. For example, Euclid’s algorithm had been known for centuries to compute polynomial greatest common divisors, but directly coding this algorithm turned out to be inefficient for polynomials over infinite fields.

Computer algebra is widely used to design the formulas that are used in numerical programs. It is also used for complete scientific computations, when purely numerical methods fail, like in public key cryptography or for some classes of non-linear problems.

To understand some of the challenges of symbolic computation, consider basic associative operations like addition and multiplication. The standard way to deal with associativity is to consider that addition and multiplication have an arbitrary number of operands, that is that $a + b + c$ is represented as $”+”(a, b, c)$. Thus $a + (b + c)$ and $(a + b) + c$ are both simplified to $”+”(a, b, c)$. However, what about subtraction, say $(a − b + c)$? The simplest solution is to rewrite systematically, so $(a + (-1)\cdot b + c)$. In other words, in the internal representation of the expressions, there is no subtraction nor division nor unary minus, outside the representation of the numbers. New Speak for mathematical operations!

A number of tools used in industry are based on symbolic execution. (cf CUTE, Klee, DART, etc). What these programs have in common is they collect explored program paths as formulas and use solvers to identify new test inputs with the potential to guide execution into new branches. SMT applies well for this problem, because instead of the random walks of fuzz testing, “white-box” fuzzing which combines symbolic execution with conventional fuzz testing exposes the interactions of the system under test. Of course, directed search can be much more efficient than random search.

However, as helpful as white-box testing is in finding subtle security-critical bugs, it doesn’t guarantee that programs are free of all the possible errors. This is where model checking helps out. Model checking seeks to automatically check for the absence of categories of errors. The fundamental idea is to explore all possible executions using a finite and sufficiently small abstraction of the program state space. I often think of this as pruning away the state spaces that don’t matter.

For example, consider the statement $a = a + 1$. The abstraction is essentially a relation between the current and new values of the boolean variable $b$. SMT solvers are used to compute the relation by proving theorems, as in:

$$ a == a_{old} \rightarrow a+1 \neq a_{old} $$ is equavalient to checking the unsatisfiability of the negation $ a == a_{old} \wedge a + 1 == a_{old} $.

The theorem says if the current value of $b$ is $\text{true}$, then after executing the statement $ a = a + 1$, the value of $b$ will be $\text{false}$. Now, if $b$ is $\text{false}$, then neither of these conjectures are valid:

$$
a \neq a_{old} \rightarrow a + 1 == a_{old}
$$
or
$$
a \neq a_{old} \rightarrow a + 1 \neq a_{old}
$$

In practice, each SMT solver will produce a model for the negation of the conjecture. In this sense, the model is a counter-example of the conjecture, and when the current value of $b$ is false, nothing can be said about its value after the execution of the statement. The end result of these three proof attempts is then used to replace the statement $a = a + 1$ by:

 if b then
   b = false;
 else
   b = *;
 end

A finite state model checker can now be used on the Boolean program and will establish that $b$ is always $\text{true}$ when control reaches this statement, verifying that calls to

lock()

are balanced with calls to

unlock()

in the original program.

do {
 lock ();
 old_count = count;
 request = GetNextRequest();
 if (request != NULL) {
  unlock();
  ProcessRequest(request);
  count = count + 1;
 }
}
while (old_count != count);
unlock();

becomes:

do {
 lock ();
 b = true;
 request = GetNextRequest();
 if (request != NULL) {
   unlock();
   ProcessRequest(request);
   if (b) b = false; else b = ∗;
 }
}
while (!b);
unlock();

Application to static analysis

Static analysis tools work the same way as white-box fuzzing or directed search while ensuring the feasibility of the program through, in turn, checking the feasibility of program paths. However, static analysis never requires actually running the program and can therefore analyze software libraries and utilities without instantiating all the details of their implementation. SMT applies to static analysis because they accurately capture the semantics of most basic operations used by mainstream programming languages. While this fits nicely for functional programming languages, this isn’t always a perfect fit languages such as Java, C#, and C/C++ which all use fixed-width bitvectors as representation for values of type int. In this case, the accurate theory for int is two-complements modular arithmetic. Assuming a bit-width of 32b, the maximal positive 32b integer is 231−1, and the smallest negative 32b integer is −231. If both low and high are 230, low + high evaluates to 231, which is treated as the negative number −231. The presumed assertion 0 ≤ mid < high does therefore not hold. Fortunately, several modern SMT solvers support the theory of “bit-vectors,” accurately capturing the semantics of modular arithmetic.

Let’s look at an example from a binary search algorithm:

int binary_search(
int[] arr, int low, int high, int key) {
 assert (low > high || 0 <= low < high);
 while (low <= high) {
 //Find middle value
 int mid = (low + high)/2;
 assert (0 <= mid < high); int val = arr[mid]; //Refine range if (key == val) return mid; if (val > key) low = mid+1;
   else high = mid–1;
 }
 return –1;
}



Summary

SMT solvers combine SAT reasoning with specialized theory solvers either to find a feasible solution to a set of constraints or to prove that no such solution exists. Linear programming (LP) solvers are designed to find feasible solutions that are optimal with respect to some optimization function. Both are powerful tools that can be incredibly helpful to solve hard and practical problems in computer science.

One of the applications I follow closely is symbolic-execution based analysis and testing. Perhaps the most famous commercial tool that uses dynamic symbolic execution (aka concolic testing) is the SAGE tool from Microsoft. The KLEE and S2E tools (both of which are open-source tools, and use the STP constraint solver) are widely used in many companies including HP Fortify, NVIDIA, and IBM. Increasingly these technologies are being used by many security companies and hackers alike to find security vulnerabilities.





Basement Framing with the Shopbot

Framing around bulkheads is painful. It is hard to get everything straight and aligned. I found the Shopbot to be very helpful. There are three problems I was trying to solve: (1) Getting multiple corners straight across 30 feet, (2) nearly no time and (3) basic pine wood framing would sag over a 28″ run.

In fairness, the cuts did take a lot of time (about 2.5 hours of cutting), but I could do other work while the ShopBot milled out the pieces. I also had several hours of prep and installation, so I’m definitely slower than a skilled carpenter would be, but probably faster off by using this solution. Plus, I think I’m definitely more straight and accurate. I especially need this, because my lack of skill means that I don’t have the bag of tricks available to deal with non-straight surfaces.

First, Autodesk Revit makes drawing ducts easy as part of an overall project model. The problem was the way the ducts were situated, the team working on the basement couldn’t simply make a frame that went all the way to the wall, because of an annoying placed door.

I was able to make a quick drawing in the model and print out frames on the shopbot. They only had to be aligned vertically which was easy to do with the help of a laser level.

second-ducts-v4

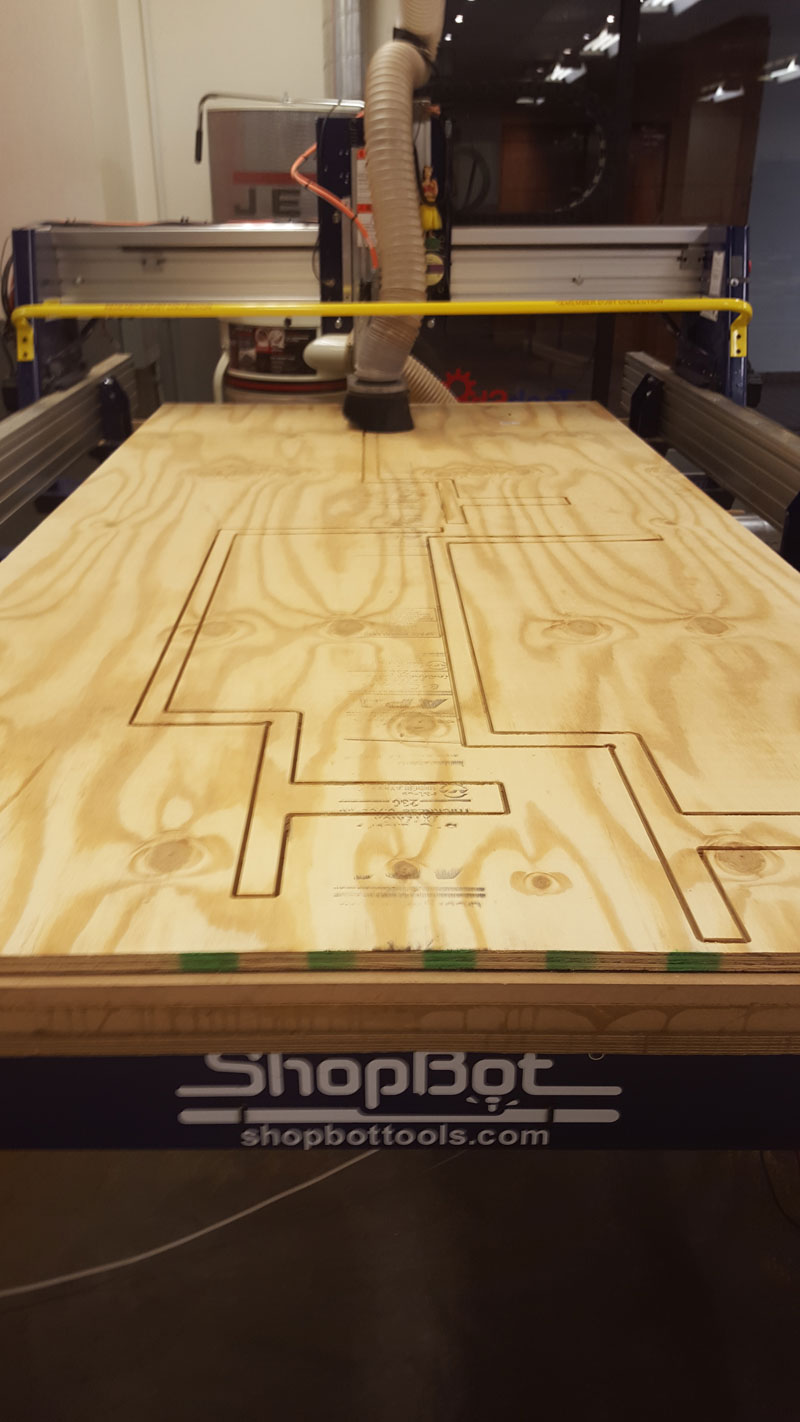

These were easy to cut out while I also had to make some parts for my daughters school project.
20160613_210346

DIY Roulette Wheel and Probability for Kids

My daughter had to make a “probability game” for her fifth grade math class. She has been learning javascript and digital design so we worked together to design and build a roulette wheel for her class.

First, she drew out a series of sketches and we talked it over. She wanted a 0.5 inch thick plywood 2 foot diameter, but after some quick calculations we decided on a $1/4$ inch thick wheel and a 18″ diameter. I had to talk her into adding pegs and a ball bearing from a skateboard from amazon for $2. The inner diameter is $1/4$ inch so I also bought a package of dowels for $5 to make the pegs. I also bought a 1/2 sheet of plywood (that I used about 1/3 of) and some hardware from Home Depot.

She wanted 10 sections with combinations of the following outcomes: Small, Large and Tiny prizes as well as two event outcomes: Spin Again and Lose a Spin. Each student would have at most three turns. We had the following frequencies (out of 10):

Outcome Frequency
Small 3
Large 2
Tiny 1
Lose a spin 3
Spin Again 1

This led to a ~~fun~~ (frustrating) discussion monte carlo code,  conditional probabilities and cumulative probabilities. Good job teacher! We got to answer questions like:

  • What is the probability of getting a large prize in a game (three spins)?
  • What is the probability you get no prize?
  • What is the expected number of spins?

She really threw the math for a loop with the Spin Again and Lose a Spin options. We had to talk about systems with a random number of trials. My favorite part was exposing her to true randomness. She was convinced the wheel was biased because she got three larges in a row. I had to teach her that true random behavior was more unbalanced than her intuition might lead her to believe.

In order to understand a problem like this, it is all about the state space. There are four possible outcomes: three different prizes or no prize. To explain the effect the spin skips have on the outcomes, I had to make the diagram below. Each column represents one of the three spins, each circle represents a terminal outcome and each rectangle represents a result of a spin.

Drawing1

From this, we can compute the probabilities for each of the 17 outcomes:

1 2 3 Prob
1 $P_L$ 0.200
2 $P_S$ 0.300
3 $P_T$ 0.100
4 L $P_L$ 0.060
5 L $P_S$ 0.090
6 L $P_T$ 0.030
7 L L 0.090
8 L S 0.030
9 S $P_L$ 0.020
10 S $P_S$ 0.030
11 S $P_T$ 0.010
12 S L 0.030
13 S S $P_L$ 0.002
14 S S $P_S$ 0.003
15 S S $P_T$ 0.001
16 S S L 0.003
17 S S S 0.001

I would love to find a more elegant solution, but the strange movements of the state-space left me with little structure I could exploit.

And we can add these to get the event probabilities and (her homework) to generate the expected values of prizes she needs to bring when 20 students are going to play the game:

Probability Expected Value Ceiling
$P_L$ 28{aaa01f1184b23bc5204459599a780c2efd1a71f819cd2b338cab4b7a2f8e97d4} 5.64 6
$P_S$ 42{aaa01f1184b23bc5204459599a780c2efd1a71f819cd2b338cab4b7a2f8e97d4} 8.44 9
$P_T$ 14{aaa01f1184b23bc5204459599a780c2efd1a71f819cd2b338cab4b7a2f8e97d4} 2.82 3
NP 16{aaa01f1184b23bc5204459599a780c2efd1a71f819cd2b338cab4b7a2f8e97d4} 3.10 4

We can also get the probabilities for the number of spins:

Count Probability
One spin 0.600
Two 0.390
Three 0.010

Simulation

When the probability gets hard . . . simulate, and let the law of large numbers work this out.

This demonstrated the probability of getting a prize was:

Probability Expected Value Ceiling
$P_L$ 28{aaa01f1184b23bc5204459599a780c2efd1a71f819cd2b338cab4b7a2f8e97d4} 5.64 6
$P_S$ 42{aaa01f1184b23bc5204459599a780c2efd1a71f819cd2b338cab4b7a2f8e97d4} 8.46 9
$P_T$ 14{aaa01f1184b23bc5204459599a780c2efd1a71f819cd2b338cab4b7a2f8e97d4} 2.82 3
NP 15{aaa01f1184b23bc5204459599a780c2efd1a71f819cd2b338cab4b7a2f8e97d4} 3.08 4

Design

So I took her designs and helped her write the following code to draw the wheel in Adobe Illustrator. This didn’t take long to write, because I had written similar code to make a series of clocks for my 5 year old to teach him how to tell time. The code was important to auto-generate the designs, because we must have tried 10 different iterations of the game.

Which produced this Adobe Illustrator file that I could laser-cut:

spinner2

From here, I designed a basic structure in Fusion 360. I cut the base and frame from $1/2$ inch birch plywood with a $1/4$ inch downcut endmill on a ShopBot.

A render:

the wheel v19

And a design:

2016-06-09 (1)

If you want the fusion file, request in comments and I’ll post.

Please let me know if you have any questions and I’ll share my design. Next up? We are going to print a new wheel to decide who washes the dishes! Kids get double the frequency.
